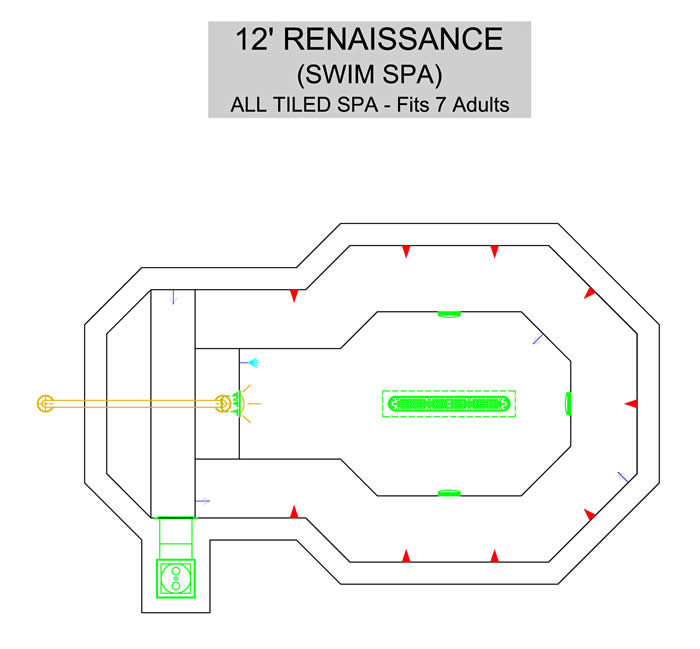

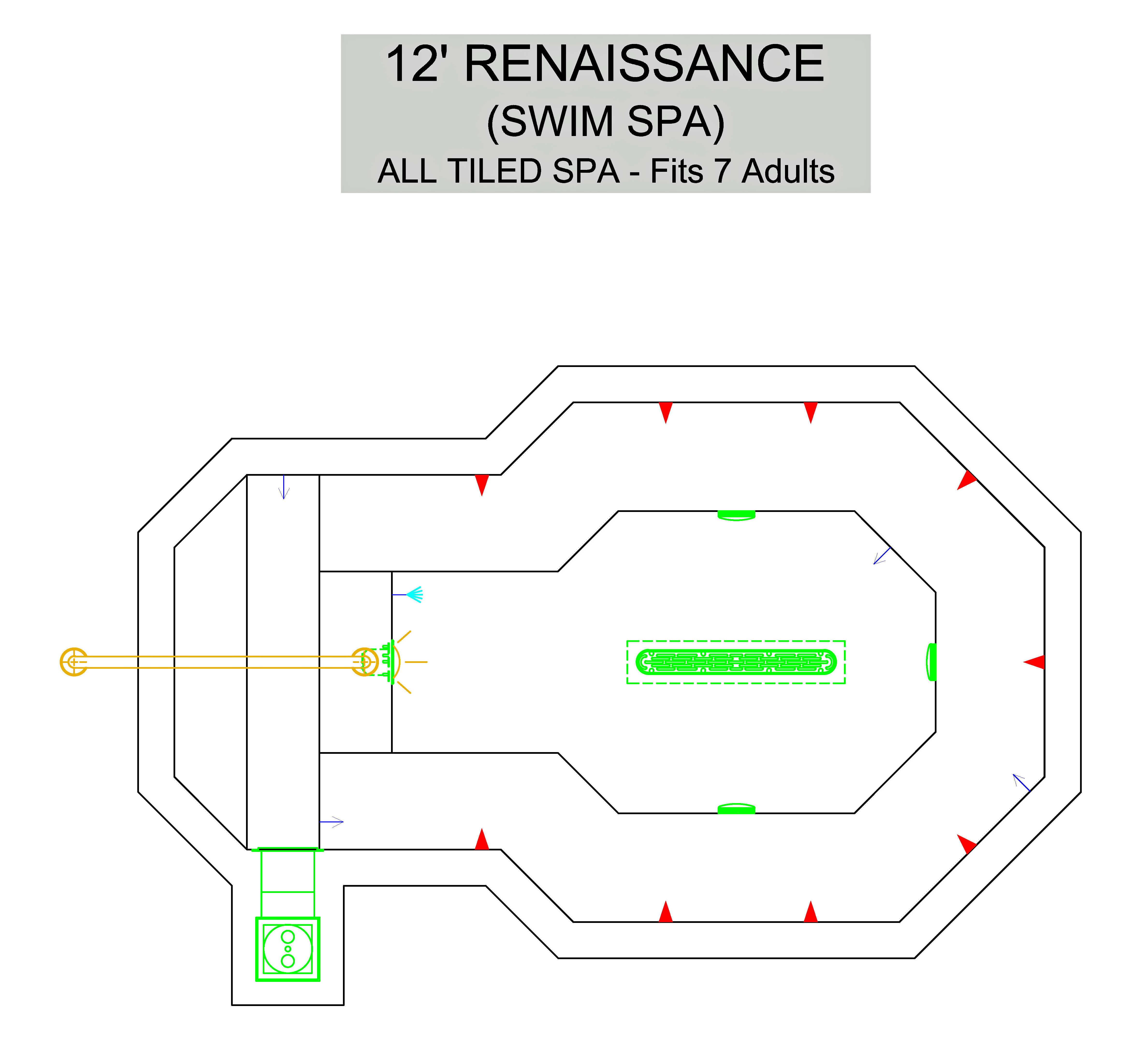

12' Renaissance
12' X 7'-2" X 3'-2" |
|
 |
Specifications:
dry weight: 2850 lbs.
wet weight: 11,816 lbs.
water: 1361 gallons
surface area: 71 sq. ft. |

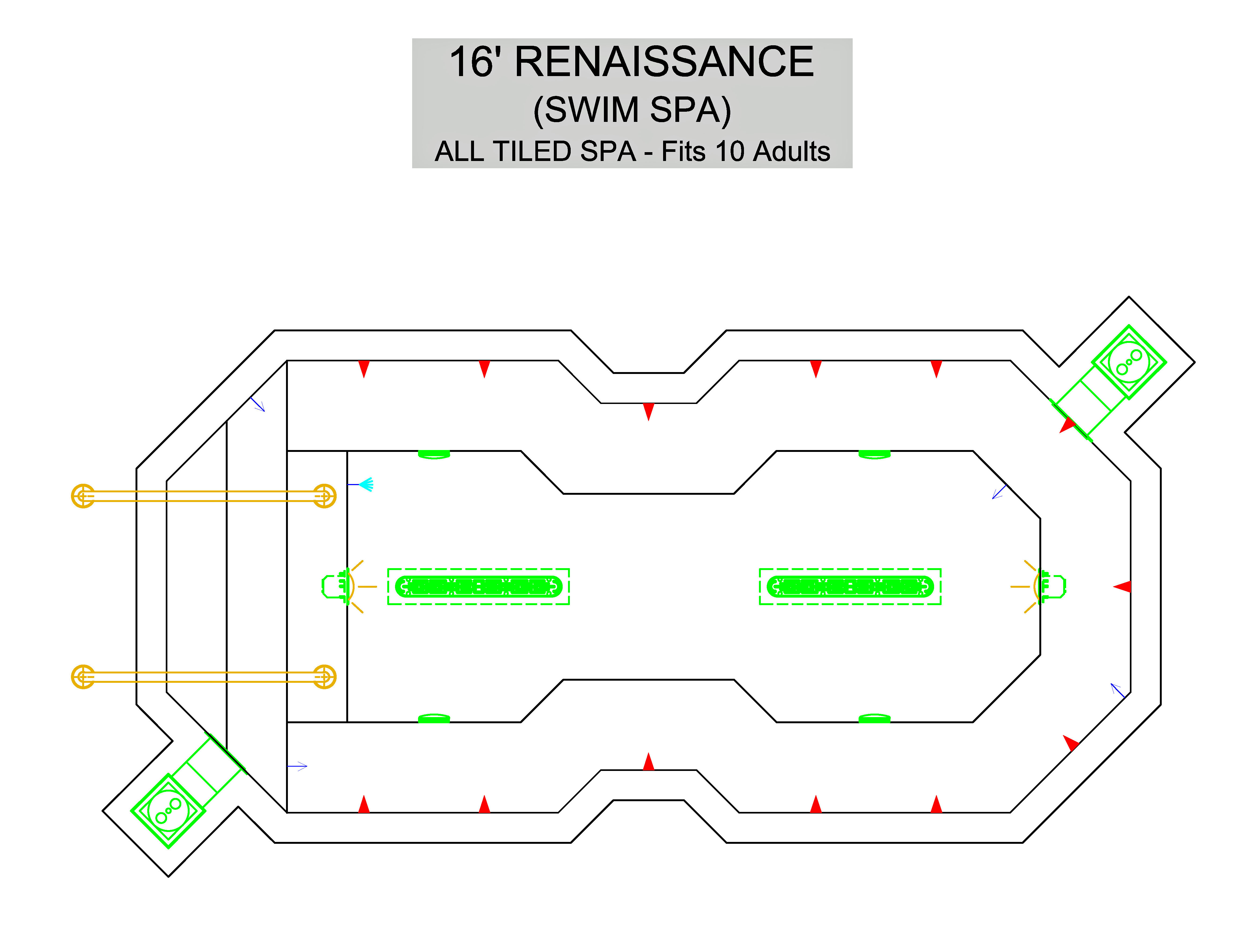

16' Renaissance
16' X 7'-2" X 3'-8" |
|
|
Specifications:
dry weight: 3100 lbs.
wet weight: 17,387lbs.
water: 2169 gallons
surface area: 109 sq. ft. |

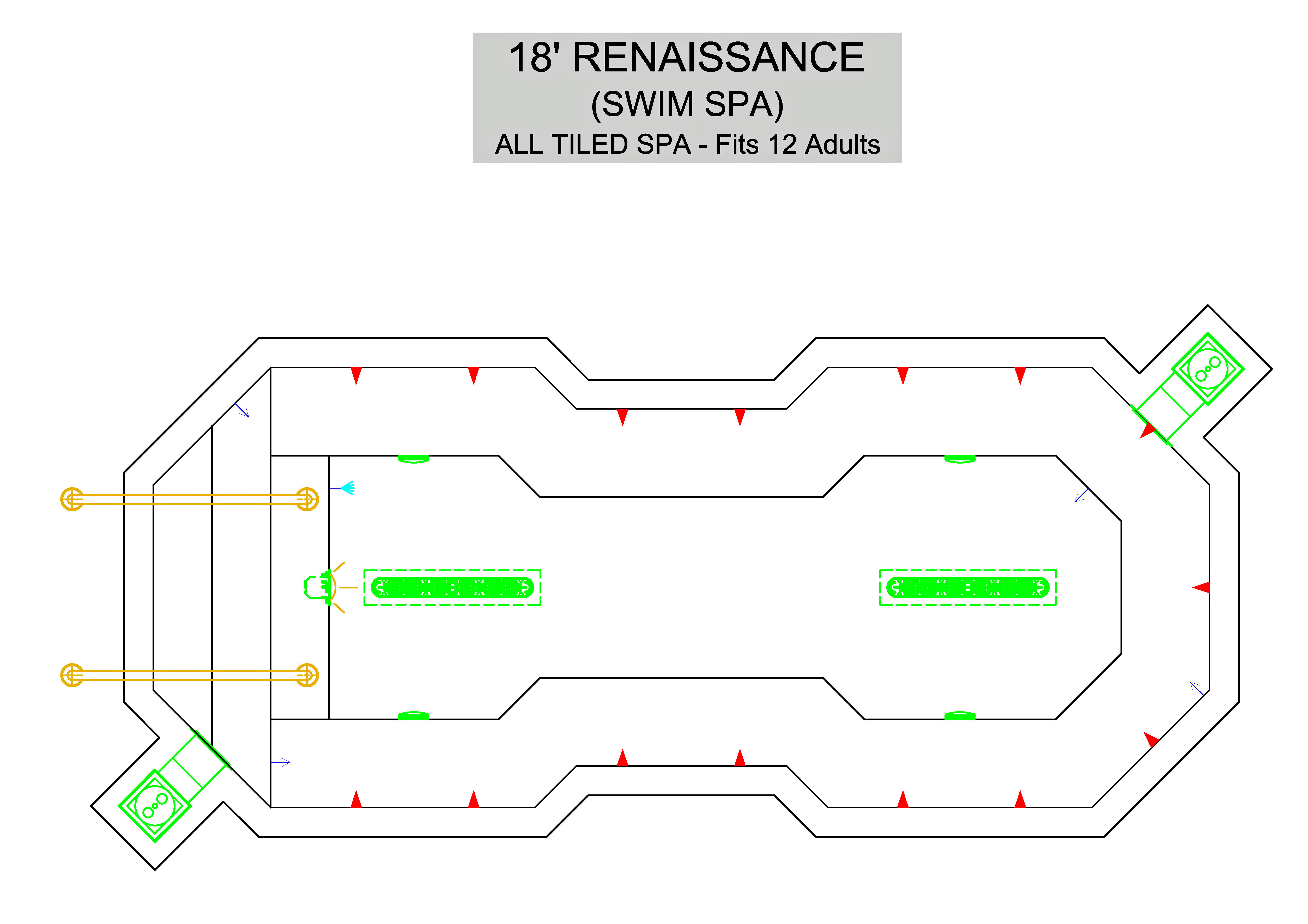

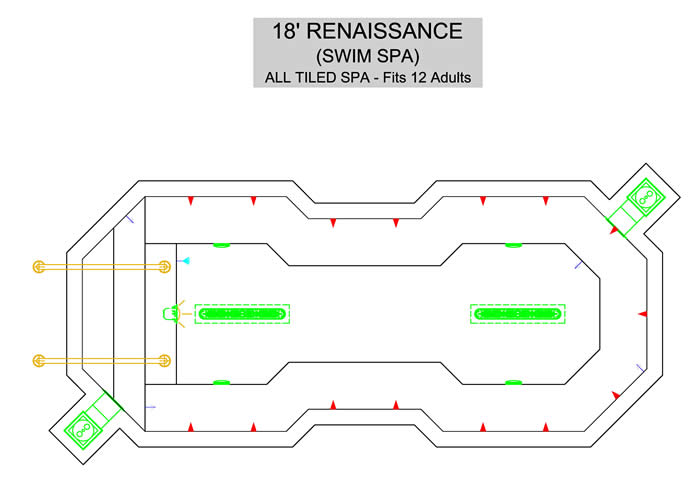

18' Renaissance
18' X 7'-2" X 3'-8" |
|
 |
Specifications:
dry weight: 3350 lbs.
wet weight: 19,564 lbs.
water: 2431 gallons
surface area: 121 sq. ft. |

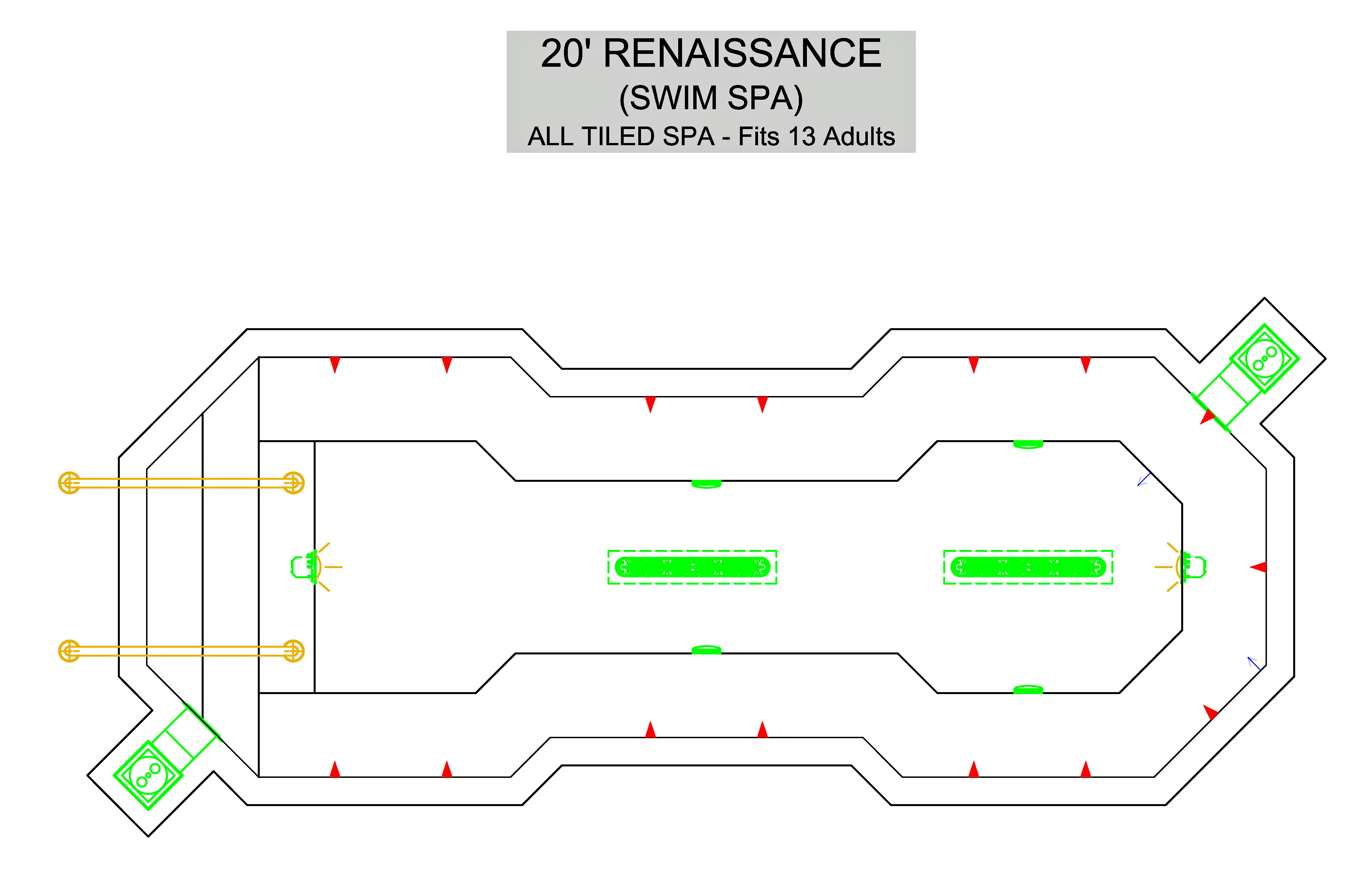

20' Renaissance
20' X 7'-2" X 3'-8" |
|
 |
Specifications:
dry weight: 3600 lbs.
wet weight: 21,510 lbs.
water: 2685 gallons
surface area: 133 sq. ft. |

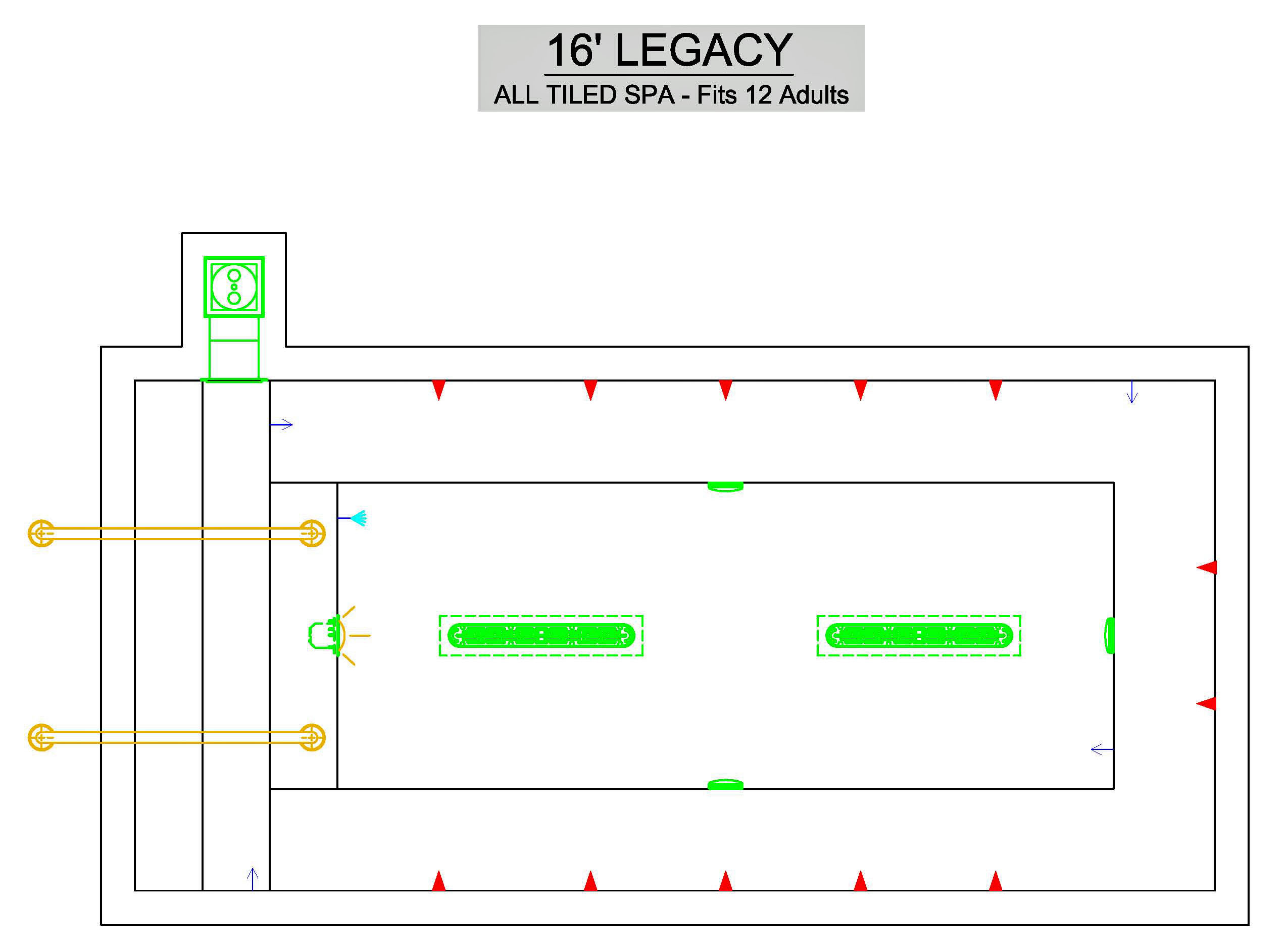

16' Legacy
16' X 7'-6" X 4' |
|
 |
Specifications:
dry weight: 3350 lbs.
wet weight: 18,716 lbs.
water: 2304 gallons
surface area: 120 sq. ft. |

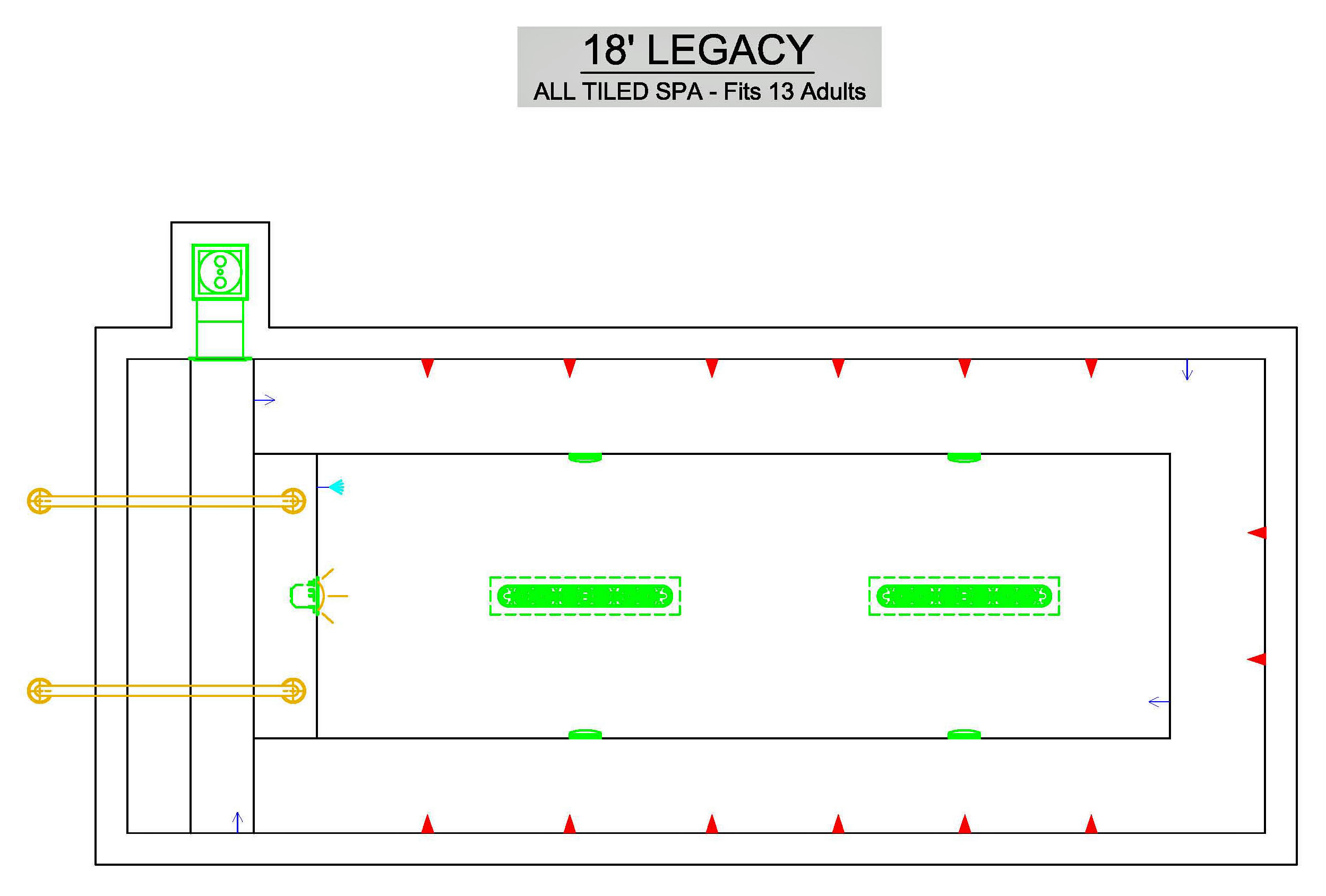

18' Legacy
18' X 7'-6" X 4' |
|
|
Specifications:
dry weight: 3600 lbs.
wet weight: 21,111 lbs.
water: 2625 gallons
surface area: 135 sq. ft. |

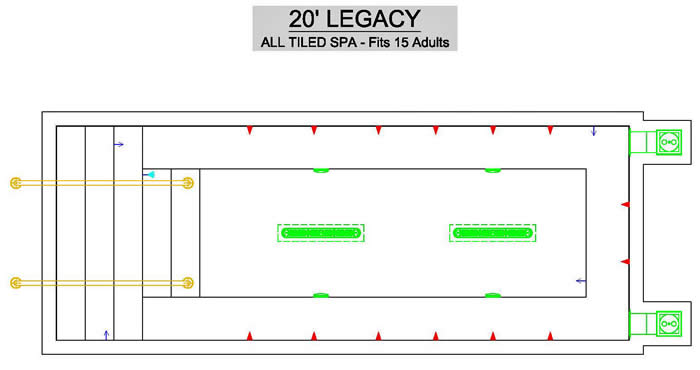

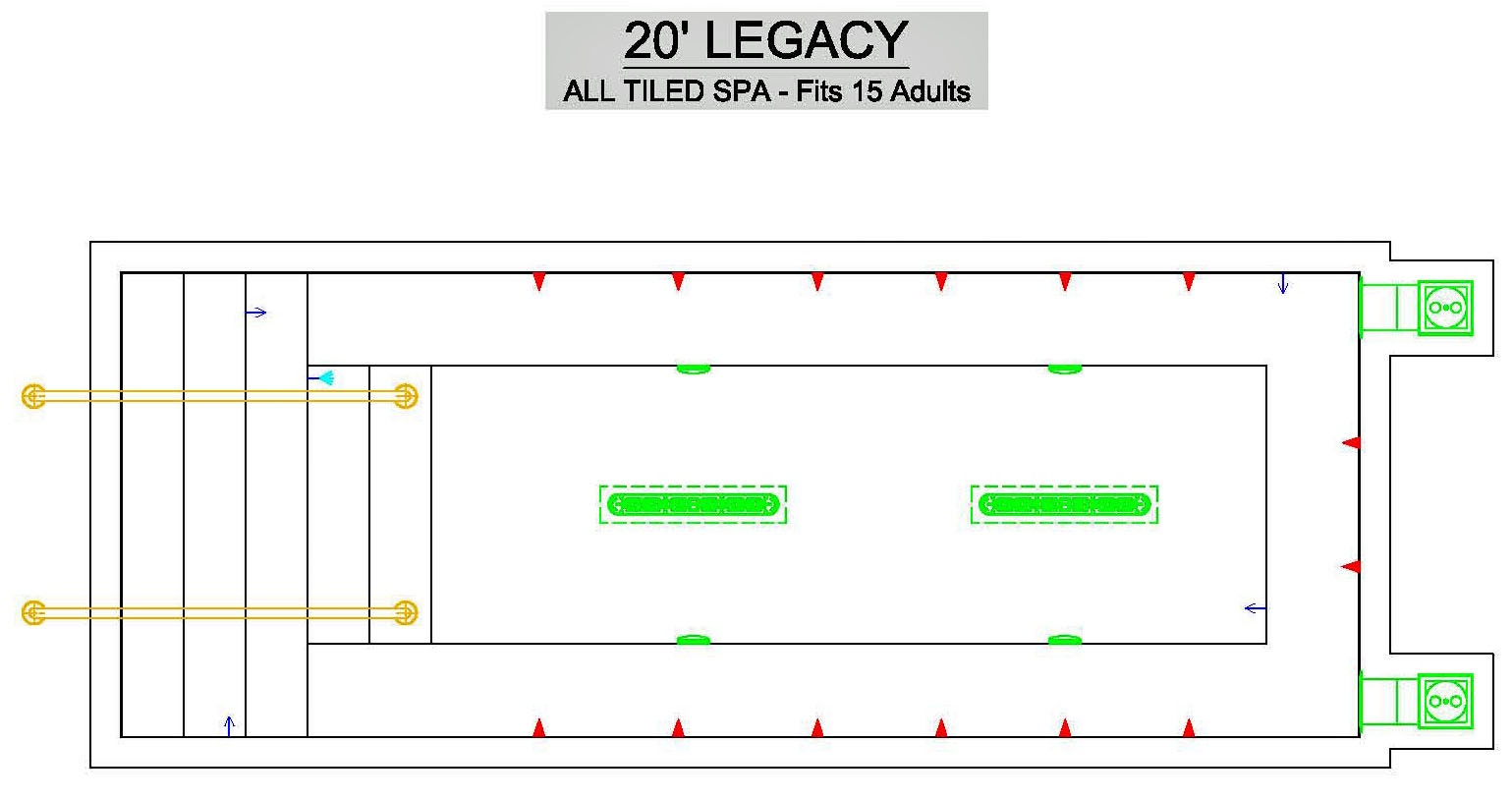

20' Legacy
20' X 7'-6" X 4' |
|
 |
Specifications:
dry weight: 3850 lbs.
wet weight: 23,207 lbs.
water: 2977 gallons
surface area: 150 sq. ft. |
| |
